Description
SPECIFICATIONS
Adapter: Input: AC: 100-240V, Output: 5V,2A
Anti-drop: 1.2 meter
BT: BT 2.1/4.2/5.1
Barcode Scanner: Build in 1D, 1D/2D Barcode printing; Online upgrade
Camera: 5 Megapixel,5M px rear camera,1D/2D scan & pay
GPS: Built-in GPS, support A-GPS
Interface: 1*Type-C USB connector, support OTG
Key PAD: Power on / off, Volume up / Scanner
Operating System: Android 14
Printer Output Type: Monochrome
Printer Technology: thermal
Thermal Printer: High-speed 58mm line, 40mm Roll, 80mm/s Print speed
WIFI: 2.4G/5G IEEE 802.11 a/b/g/n/ac
battery capacity: 3000mAh
brand name: HCCTG
compatible devices: Thermal Printer,Barcode Scanner,Card Reader,Smartphone
connectivity technology: Usb,Bluetooth,Wi-Fi,NFC Technology
cpu: MTK6765 Octa-core 2.3GHz
model number: R330 Plus
place of origin: Guangdong, China
ram: 3 GB
ssd: 32GB
#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-3{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-4{text-align:center}#detail_decorate_root .magic-5{font-family:inherit;font-size:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-6{font-size:20px}#detail_decorate_root .magic-7{border-bottom-style:solid;border-bottom-color:#8f8a8a;font-family:Roboto;font-size:22px;color:#403e3e;background-color:#fff;font-style:normal;font-weight:bold;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-8{width:750px}#detail_decorate_root .magic-9{overflow:hidden;width:750px;height:419.0625px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-10{margin-top:0;margin-left:0;width:750px;height:419.0625px}#detail_decorate_root .magic-12{font-size:16px}#detail_decorate_root .magic-13{font-size:18px}#detail_decorate_root .magic-14{font-size:24px}#detail_decorate_root .magic-15{margin-top:-10px;margin-left:-29px;width:787px;height:440px}#detail_decorate_root .magic-16{margin-top:-22px;margin-left:-12px;width:787px;height:440px}#detail_decorate_root .magic-17{margin-top:-8px;margin-left:-12px;width:787px;height:440px}#detail_decorate_root .magic-18{overflow:hidden;width:373px;height:400.35333333333335px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-19{margin-top:0;margin-left:0;width:373px;height:400.35333333333335px}#detail_decorate_root .magic-20{overflow:hidden;width:373px;height:400px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-21{margin-top:0;margin-left:0;width:373px;height:428.7013333333333px}#detail_decorate_root .magic-22{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-23{margin-bottom:0}#detail_decorate_root .magic-24{position:relative;width:100%}#detail_decorate_root .magic-25{width:750px;height:893px;overflow:hidden;margin-bottom:0}#detail_decorate_root .magic-26{position:relative;left:0;top:0;width:750px;height:893px}#detail_decorate_root .magic-27{overflow:hidden;width:750px;height:826.8987341772153px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-28{margin-top:0;margin-left:0;width:750.0000000000001px;height:826.8987341772153px}#detail_decorate_root .magic-29{overflow:hidden;width:750px;height:747.1518987341773px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-30{margin-top:0;margin-left:0;width:750.0000000000001px;height:747.1518987341773px}#detail_decorate_root .magic-31{overflow:hidden;width:750px;height:732.9113924050633px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-32{margin-top:0;margin-left:0;width:750.0000000000001px;height:732.9113924050633px}#detail_decorate_root .magic-33{overflow:hidden;width:750px;height:764.2225031605562px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-34{margin-top:0;margin-left:0;width:750px;height:764.2225031605562px}#detail_decorate_root .magic-35{overflow:hidden;width:750px;height:938px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-36{margin-top:0;margin-left:0;width:750px;height:938px}#detail_decorate_root .magic-37{width:750px;border-collapse:collapse}#detail_decorate_root .magic-38{min-height:18px;padding:5px 10px;width:169px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-39{min-height:18px;padding:5px 10px;width:522px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-40{overflow:hidden;width:750px;height:900px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-41{margin-top:0;margin-left:0;width:750px;height:900px}#detail_decorate_root .magic-42{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-43{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-44{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-45{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-46{overflow:hidden;width:750px;height:169px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-47{margin-top:0;margin-left:0;width:750px;height:169px}

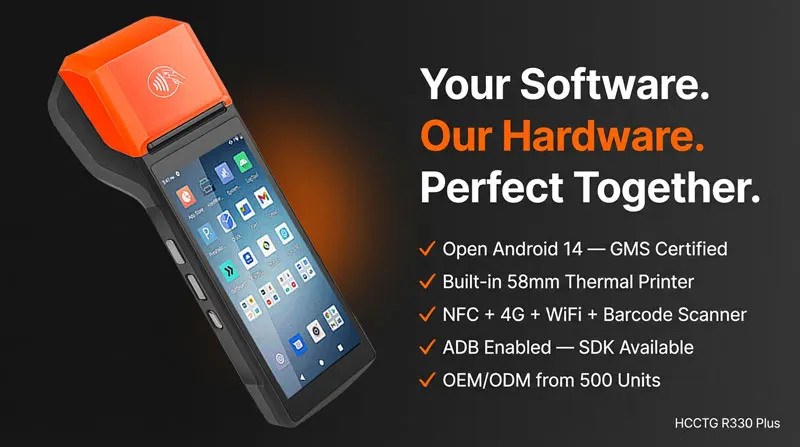

Based on the Android 14, R330 Plus OS is more fluent and efficient.Work with TMS(Terminal Management System)，private deployment,Central-ized management is easily done.
**R330 Plus is a pure Android 14 hardware platform.
**No pre-installed POS software. No locked ecosystem.
**Just a powerful,certified device ready to run YOUR application.
Product Description
Standard Configuration:
Android 14 (MTK6765)
Processor: Octa-core, 2.3GHz
Camera: 5MP camera
Display: 5.5 inch, 1440*720

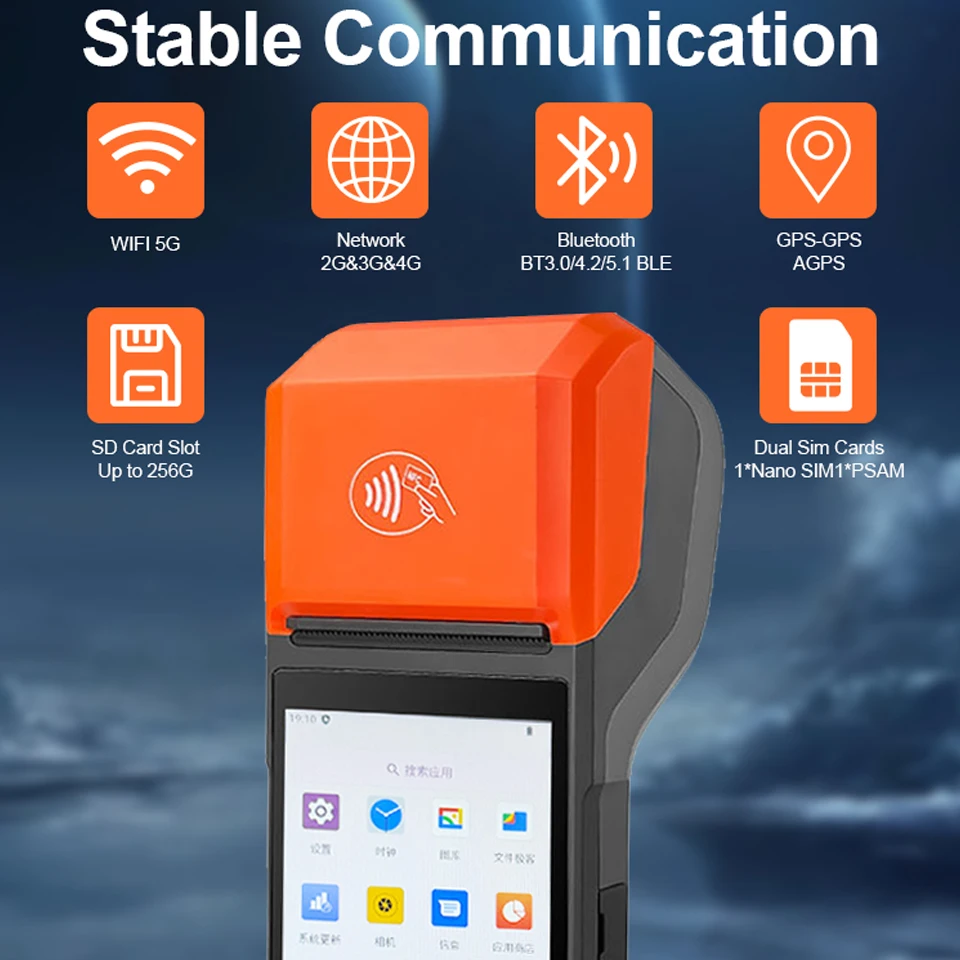

GPS, 4G+ Wifi+Bluetooth
Memory: 3+32 G (DDR4)
with 58mm printer

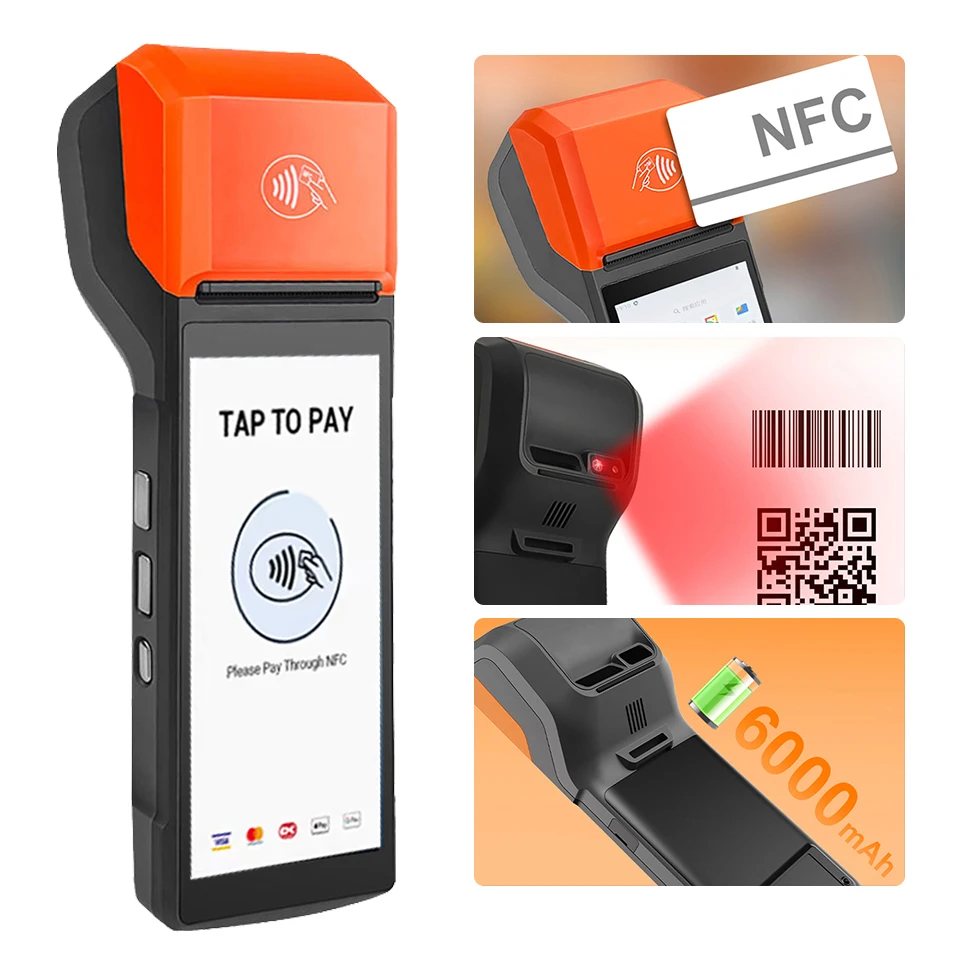

NFC: Supports 14443A/ 14443B
GMS certificate (Support SoftPOS)
2.4/5G dual Wi-Fi, Dual SIM Card
Supply Customized Service:
①Customize Logo on Pos Cover which can make your brand more popular;
②Customize Wall Paper/Logo Boot Animatlon to promoting your Brand;
③OS Customize (keep your application only, and limit others app install)
④Package box cusomized；
①Customize Logo on Pos Cover which can make your brand more popular;
②Customize Wall Paper/Logo Boot Animatlon to promoting your Brand;
③OS Customize (keep your application only, and limit others app install)
④Package box cusomized；
R330 Plus Introduction
R330 Plus is a portable and multi-functional Android mobile POS along with Octa-core 2.3Ghz CPU + Android 14 version + 3GB RAM, 32GB Flash

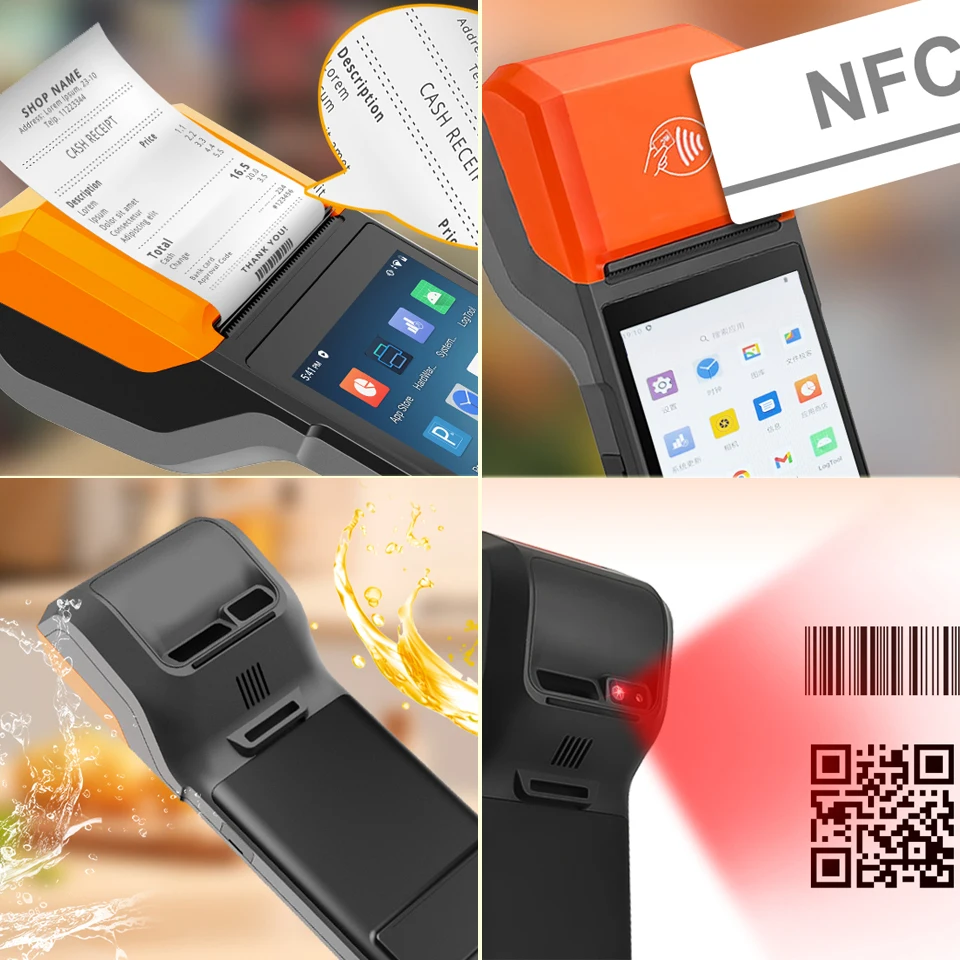

Printer:
1. Paper width: 58mm, 40 mm paper roll, Print speed: 80mm/s
2. Support receipt printing, web printing,1D/2D/QR Code printing,pictures printing,logo printing
3. Support pattern, multi-language printing
Application:
Full scene coverage: ticket printing, membership management, QR code payment, mobile ordering, takeout orders, queuing, parking management.
Industry wide coverage: retail, catering, local living services and other formats.
Service:
1. Support OEM/ODM
2. Support free SDK to develop software for you!!
3. Samples in stock, fast shipment after payment succeeded
R330 Plus Hardware Configuration:
If you complete the software development or install your own APP, the features you will receive include:
Large "core" and dirty: The new generation handheld POS flagship configuration has a larger screen, stronger core, and longer battery life
Starting from the product structure design, moisture-proof and splash-proof measures should be taken, and the rear shell should not be tightened with a single screw; Key interface, incorporating rubber plug design to prevent water and oil stains from entering the equipment - special selling point

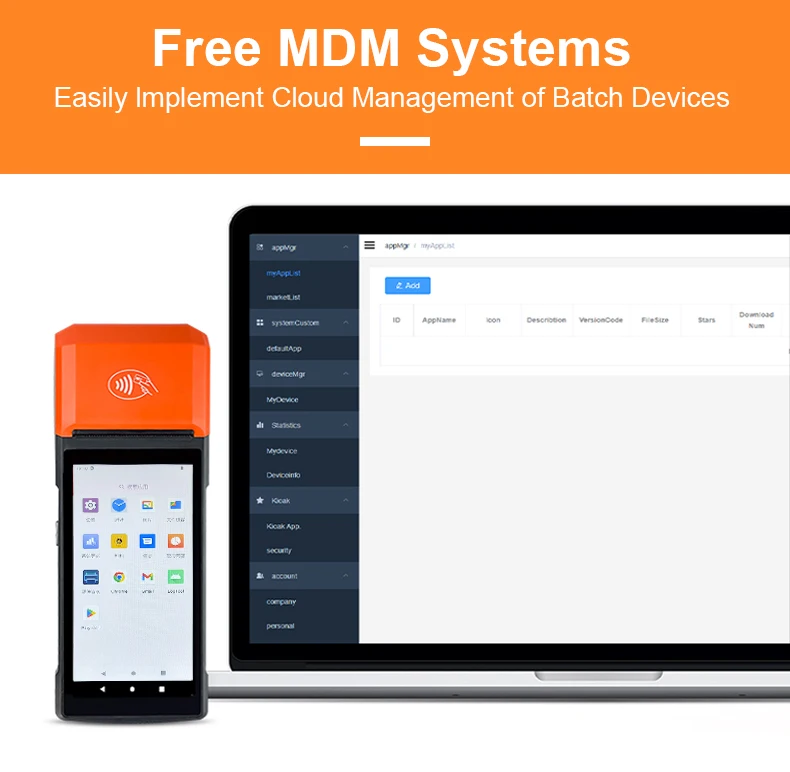

Equipped with a free remote terminal management system, hardware
dynamic viewing and monitoring, multi-level account classification management, exclusive application store, customized software deployment, handy - special selling points
Product Paramenters
Operating System | Android 14 GMS certified |
Processor | MTK6765, Octa-core, 2.3GHz |
Memory | 3GB RAM+32GB ROM, DDR4 |

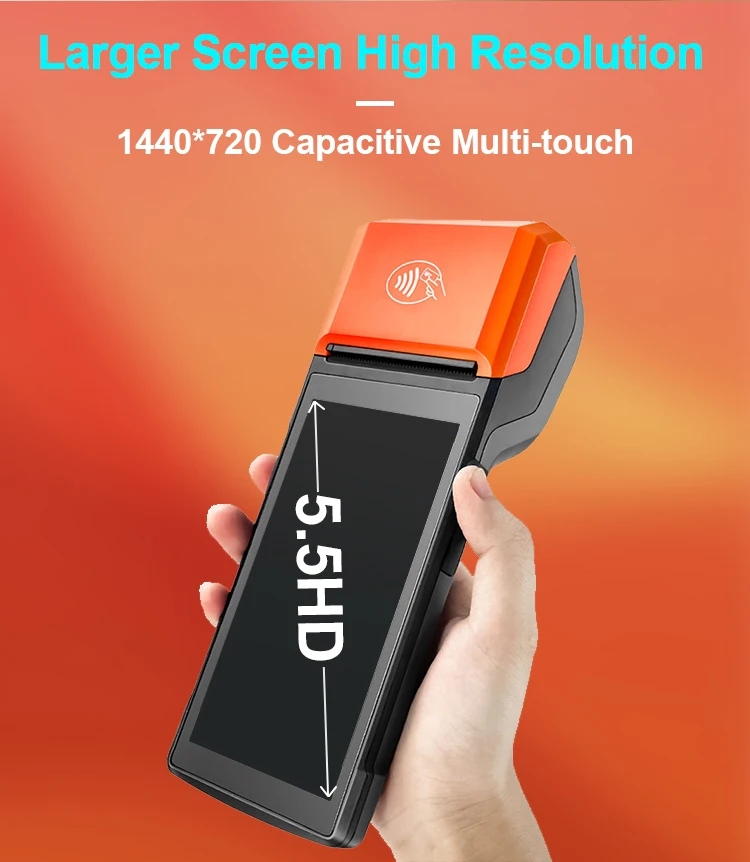

Display | 5.5″HD, 1440 * 720, capacitive Multi-touch |
Camera | Rear: 5.0 MP auto-focus with flash LED, support 1D/2D |
NFC Reader（Standard） | Type A&B card, Mifare card, Felica card ISO/IEC 14443 and ISO 15693 complaint |
Scanner (optional) | Newland 1D&2D barcode scan module, support 1D/2D scan |
Printer | Built-in 58mm thermal printer Printing speed up to 80 mm/s Paper roll: 58 * 40 mm |

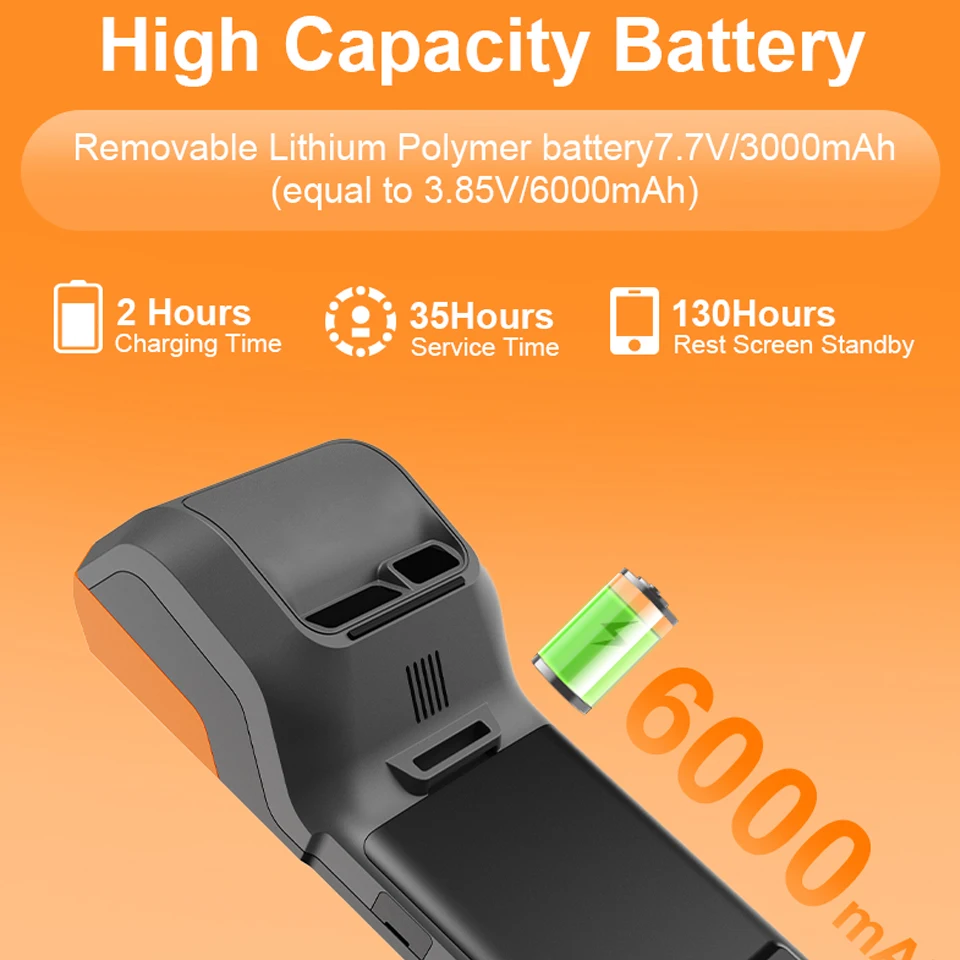

Battery | Removable, polymer lithium-ion battery 7.7V 3000mAh (equal to 3.85V 6000mAh) TUV CB Safety verify |
Certificates | CE/FCC/ROHS/GMS |
Network | 2G&3G&4G network 2G/GSM: B2/B3/B5/B8 3G/UMTS (WCDMA): B1/B2/B4/B5/B8 4G/TD-LTE: B38/B39/B40/B41 4G/FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B28 |
Card Slots | 1 * Nano SIM+ 1 * Micro SIM card slot 1 * Micro SD expand card slot |
Wi-Fi | 2.4G/5G IEEE 802.11 a/b/g/n/ac |
Bluetooth | BT 2.1/4.2/5.1 |
Speaker | 1 * 1W |
GPS | GPS& AGPS |
Interface | 1 * Type-C, support OTG |
Power Adapter | Input: AC 100~240V Output: DC 5V/2A |
Working Environment | Working temperature: -10~50℃ Storage temperature: -20~60℃ |
Body Dimension | 219 (L) * 80 (W) * 17.9 (H)mm NW (with battery): 345g |
Package Size | Single box: 23 * 9 * 6cm, GW: 0.65kg Package list: Adapter * 1, Type-C * 1, Thermal Paper Roll 58 * 40 * 1, Manual * 1. Carton Size: 32 * 24.5 * 21 cm GW: 6.8kg (10 pcs) |
Accessories Optional | Tempered Screen protector, Hand Strap, Silicone Case Bag |
Related Products

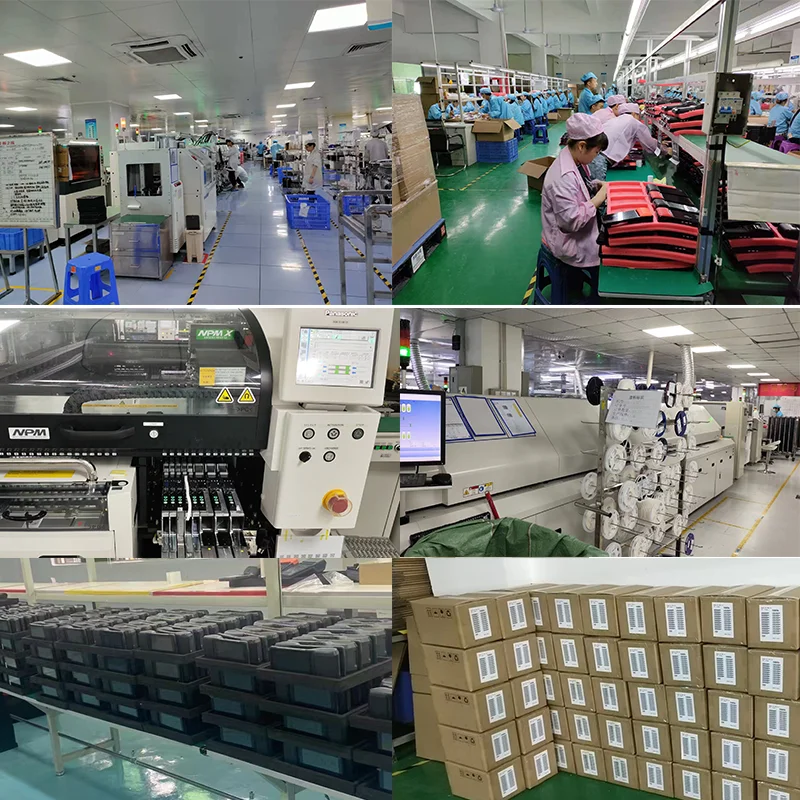

Company Profile
Quality Inspection
Certifications
Package & Shipping
FAQ
Q. Are you manufacturer?
A.Yes, we are manufacturers. We have been in PC/POS/Mobile Payment product & Solution for 14 years. We can provide OEM / ODM customized service according to our customers’ various application and demands.
Q. Would you provide SDK for me?
A.Yes, we offer free SDK if you order sample. All the contents in a CD ROM with sample together.
Q. What warranty for the products?
A.According to our warranty policy, we will provide 12 months warranty time from the shipment date for our all products (Excluded the consumable parts). As for the mass order, we will provide certain proportion spare parts or RMA machine for local service.
Q.What is the minimum order?
A.We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales
department.
Q. Can we get the free sample?
A.Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. When they place the mass order, we can return the sample cost to the customers.
Q. Do you accept Paypal?
A.Yes, we accept paypal. Besides, we accept Western Union, T/T, L/C, Secure payment (Escrow Service from Alibaba) and so on.
Q. What's the delivery time?
A.Generally, sample can be shipped in 2-3 working days after payment. For quantity, the leading time will be 1-4 weeks depend on exact quantity.
Q.Which way to deliver the goods?
A.By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing. By Sea: Inform us the Sea Port to check which ship line.
By Air: Inform us the Airport to check which flight. Or pick up by the customers.
Q. What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
d. As for the returned failure products, we will fix it and return to the customers in one week after we received it;
