Description
SPECIFICATIONS
Brand Name: ESCAM
Cable Length: 100m,10m
Certification: NONE
High-concerned chemical: None
Origin: Mainland China
PCS of Camera: 8PCS
Resolution: 3 MP
Smart home platform: NONE
Video Input: 8 Channel

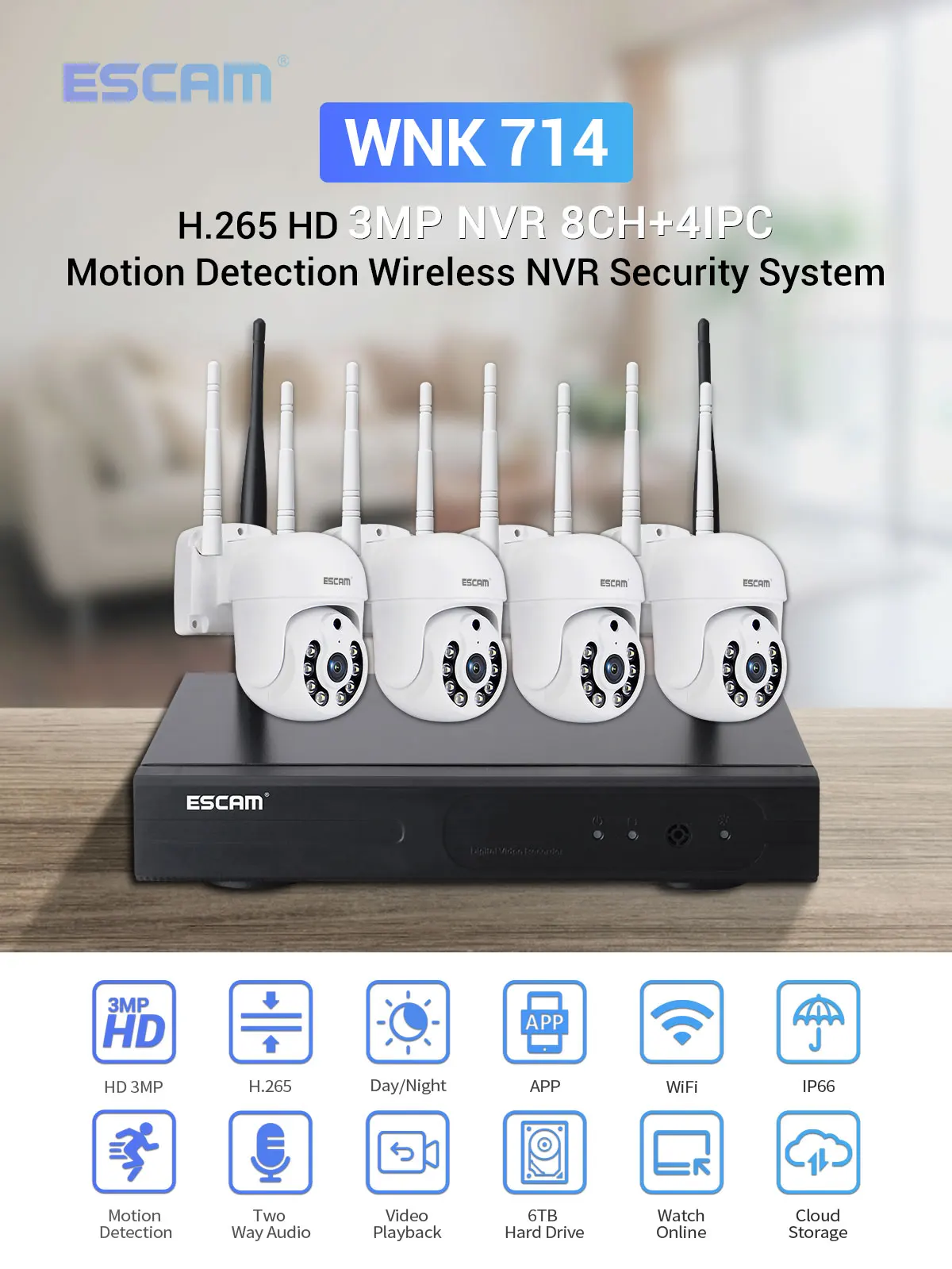

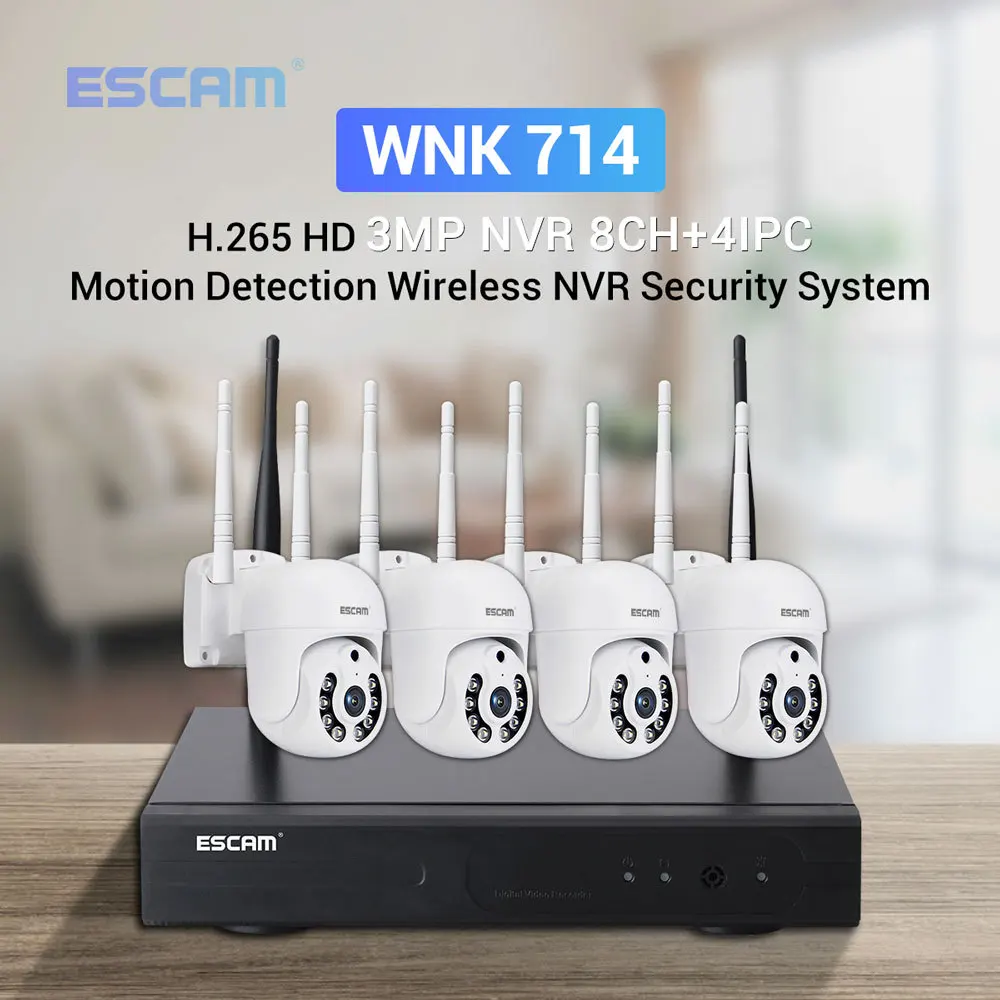

ESCAM H.265 3MP HD Wireless CCTV System Two Way Audio Waterproof PTZ WIFI IP Security Camera 8CH P2P NVR Video Surveillance Kit
1. Support H.265 video compression format
2.8ch wireless NVR+4ch 3MP HD dome camera
3. Three types of intelligent full-color night vision with dual light sources
3. Support two-way voice

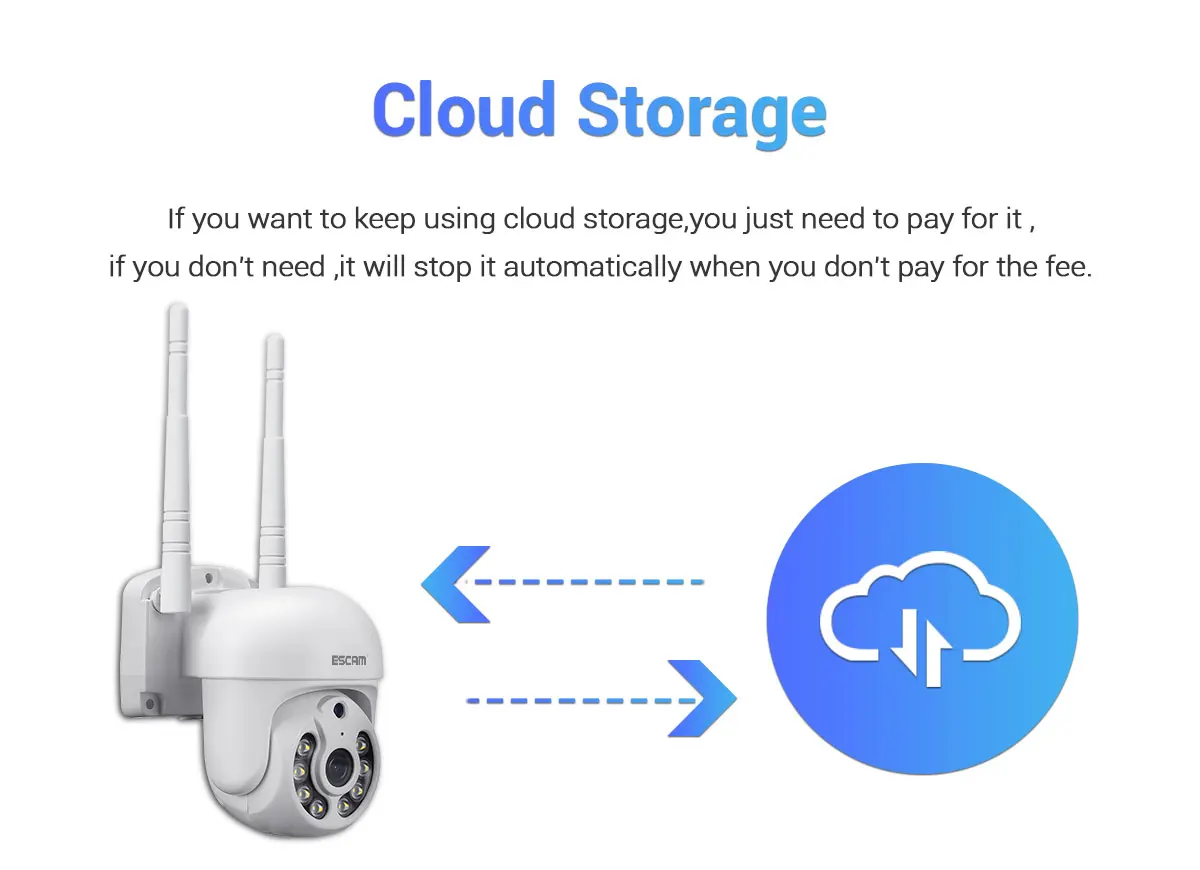

4.7 days free recurring cloud storage
5. Maximum support for 1-bay 6TB hard drive
6. Support motion detection alarm push video recording
7. Support mobile phone APP remote monitoring
2.8ch wireless NVR+4ch 3MP HD dome camera
3. Three types of intelligent full-color night vision with dual light sources
3. Support two-way voice
4.7 days free recurring cloud storage
5. Maximum support for 1-bay 6TB hard drive
6. Support motion detection alarm push video recording
7. Support mobile phone APP remote monitoring

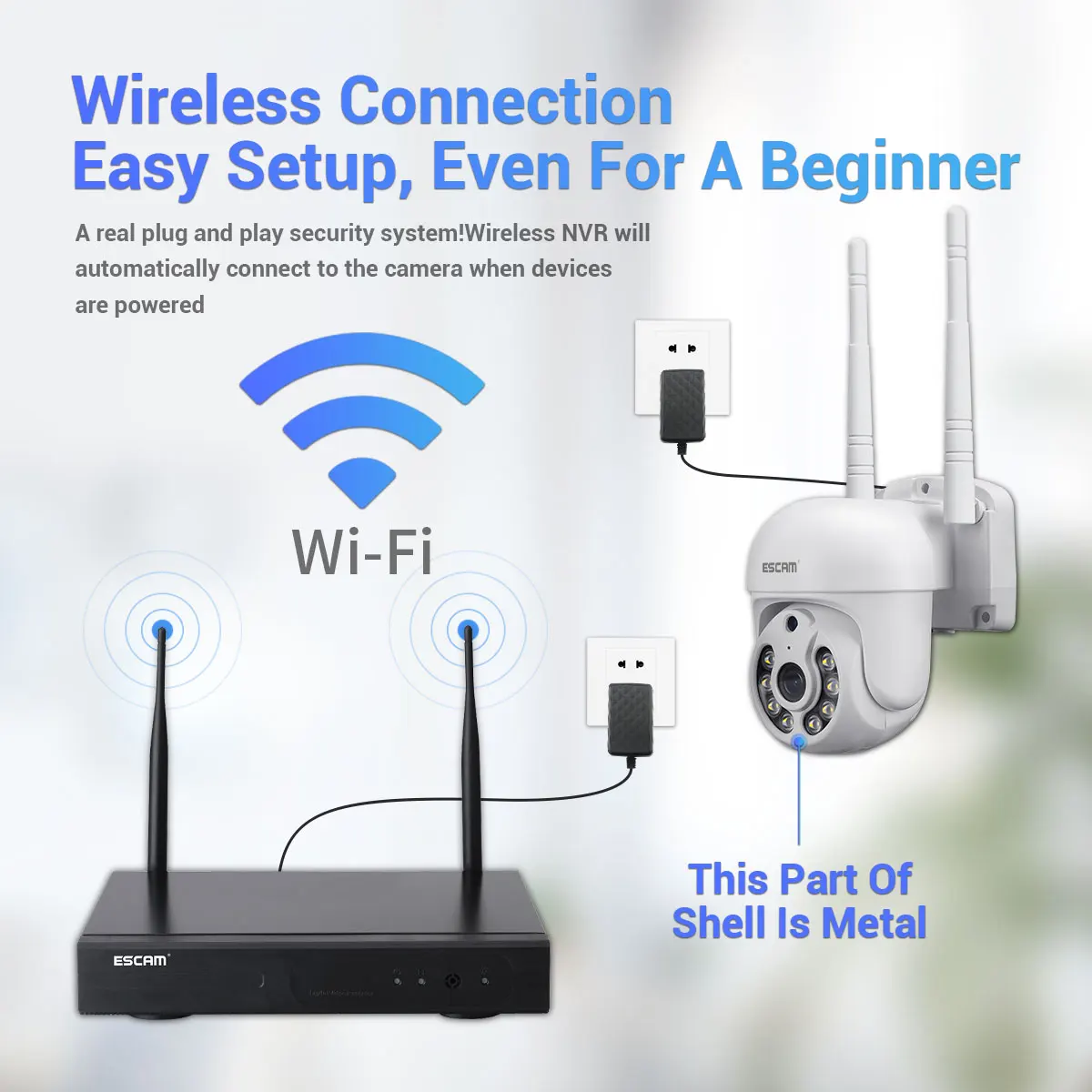

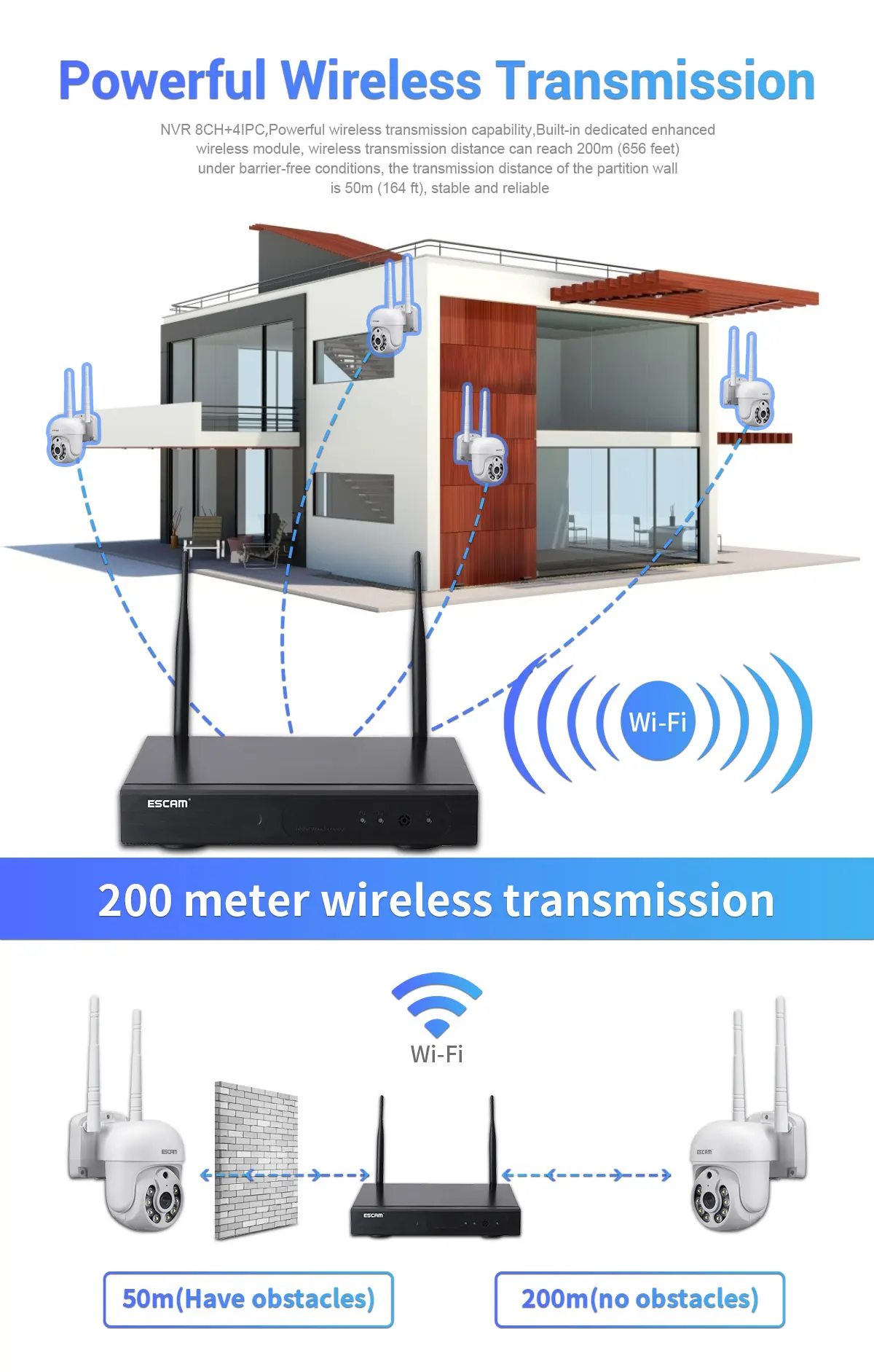

| * 3.0MP wireless network hard disk video recorder; * Built-in security dedicated wireless WIFI module, stable signal and strong anti-interference ability; * No need for WIFI pairing, the image will be displayed when the box is powered on; * Wired and wireless mixed use, adapt to various scenarios; * P2P EseeCloud (APP: EseeCloud), remote connection in seconds, smooth and stable picture; * Support multiple alarm triggers (video loss/motion detection, etc.) and alarm output (voice/E-Mail/FTP, etc.); * Support Android/Apple mobile phone (or tablet) remote (LAN and Internet) access and control. |
|||||||||||
| Wireless NVR | |||||||||||
| operating system | Embedded Linux real-time operating system | ||||||||||
| Video and audio input | Network video input | 8 channels | |||||||||
| Video and audio output | HDMI output | 1 channel, resolution: 1024x768, 1280x1024, 1366x768, 1440x900, 1920x1080p, support audio output |
|||||||||
| VGA output | 1 channel, resolution: 1024x768, 1280x1024, 1366x768, 1440x900, 1920x1080p |
||||||||||
| Video and audio codec parameters | Video resolution | D1/960H/720P/960P/1080P/3MP | |||||||||
| Synchronous playback | 4 channels | ||||||||||
| Video | Video/capture mode | Manual recording, timing recording, motion detection recording, alarm recording | |||||||||

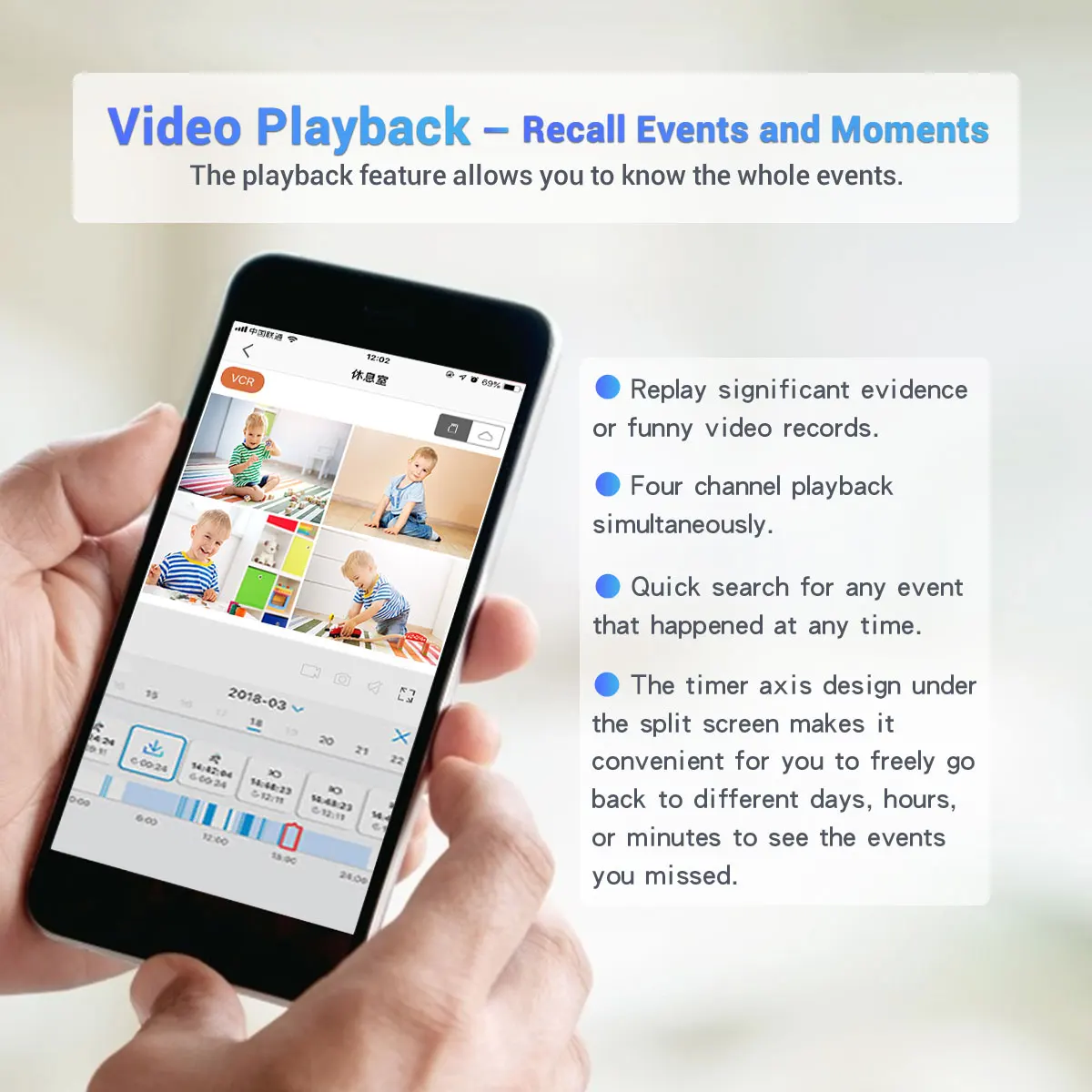

| Playback mode | Instant playback, regular playback, event playback | ||||||||||
| Backup mode | Regular backup | ||||||||||
| Storage | Cloud storage | 7 days free recurring storage | |||||||||
| Hard disk interface type | 1 SATA interface | ||||||||||

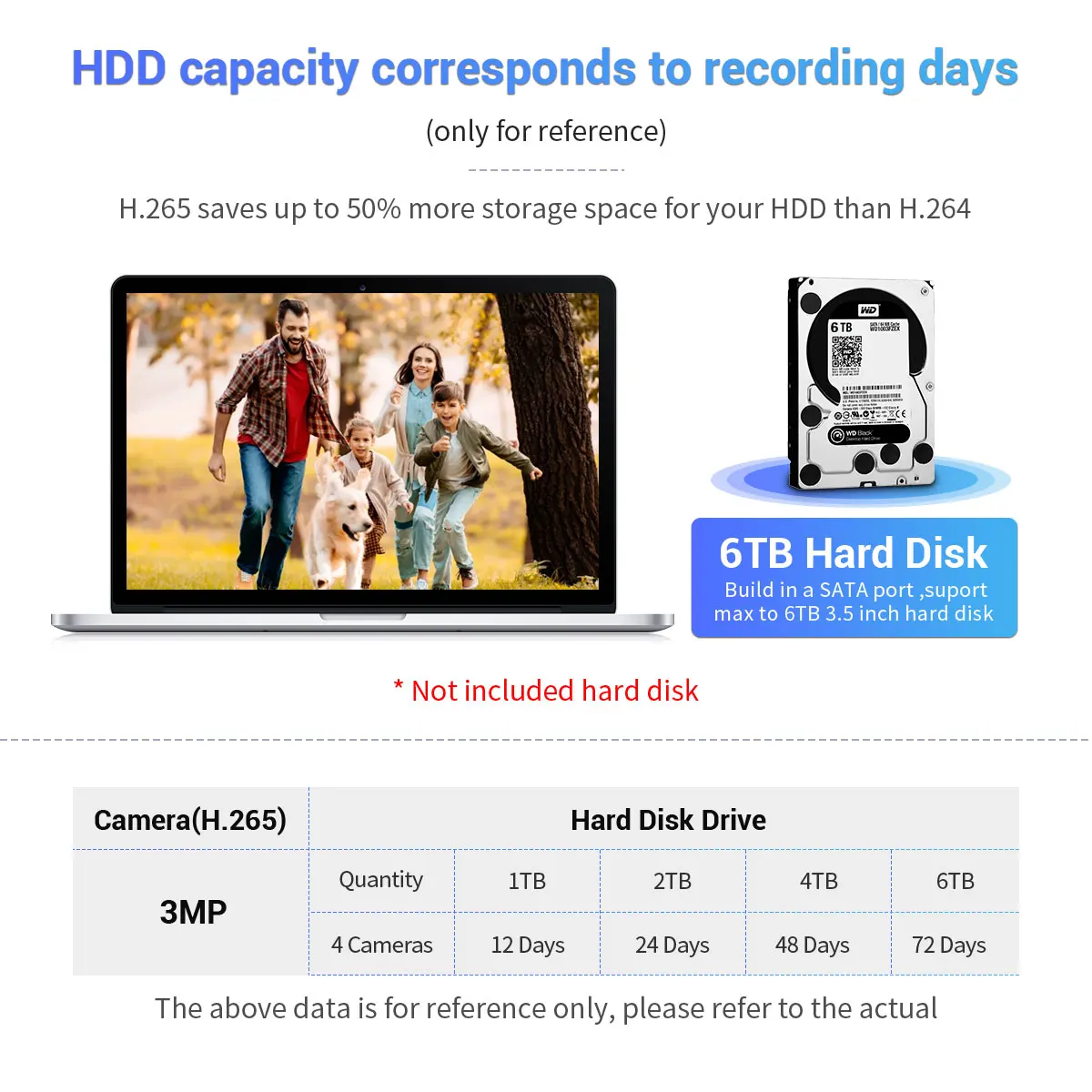

| Maximum hard disk capacity | Hard drive up to 6TB | ||||||||||
| External interface | Network Interface | 1, RJ45 10M/100M adaptive Ethernet port | |||||||||
| USB interface | 1 USB | ||||||||||
| audio port | A 3.5mm headphone port | ||||||||||
| Network | Network protocol | UPnP (plug and play), SMTP (mail service), PPPoE (dial-up Internet access), DHCP (automatically obtain an IP address), etc. | |||||||||
| other | power supply | DC 12V 2A | |||||||||
| Power consumption (without hard disk) | ≤5W | ||||||||||
| Operating temperature | -10℃--＋55℃ | ||||||||||
| Working humidity | 10%--90% | ||||||||||
| Weight (without hard disk) | ≤1Kg | ||||||||||
| size | 255×220×42mm | ||||||||||
| Wireless IPC | |||||||||||
| Pixel | 3MP | ||||||||||
| Image Sensor | 1/2.7" CMOS Sensor, color: 0.1 Lux, black/white: 0.01 Lux | ||||||||||
| Lens | 4mm | ||||||||||
| Video processing | H.264/H.265 video encoding, support dual stream | ||||||||||
| Image output | Main stream: 2304*1296@15fps; Sub stream: 640x360@15fps | ||||||||||
| shutter | Automatic shutter | ||||||||||
| Noise reduction | Support 2D/3D noise reduction | ||||||||||
| Wide dynamic | Support digital wide dynamic | ||||||||||
| Day and night mode | IR-CUT infrared filter type support infrared / full color / smart 3 modes | ||||||||||
| Image flip | Support horizontal and vertical flip | ||||||||||
| Audio processing | G.711 codec standard, support audio and video synchronization | ||||||||||
| audio port | 1 input, level 2Vp-p, impedance 1kΩ, support MIC/pickup input; 1 output, impedance 8Ω, 1W output power, support direct speakers | ||||||||||
| Wired network | 1 RJ45 Ethernet interface, 10/100M adaptive; support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP and other network protocols | ||||||||||
| wireless network | 802.11b/g/n | ||||||||||
| IR signal interface | 1 photoresistor interface, 1 IR-CUT drive interface, support dual light source lamp panel control (dual IO control, no lamp panel MCU) | ||||||||||
| Yuntai | 350° left and right, 90° up and down | ||||||||||
| Reset button interface | stand by | ||||||||||
| SD card slot | Max support 128G | ||||||||||
| Features | Motion detection; push alarm information; support remote monitoring of mobile phones and clients | ||||||||||
| Night vision | 4 IR light + 4 white light | ||||||||||
| power supply | DC 12V 1A | ||||||||||
| weight | 0.65kg | ||||||||||

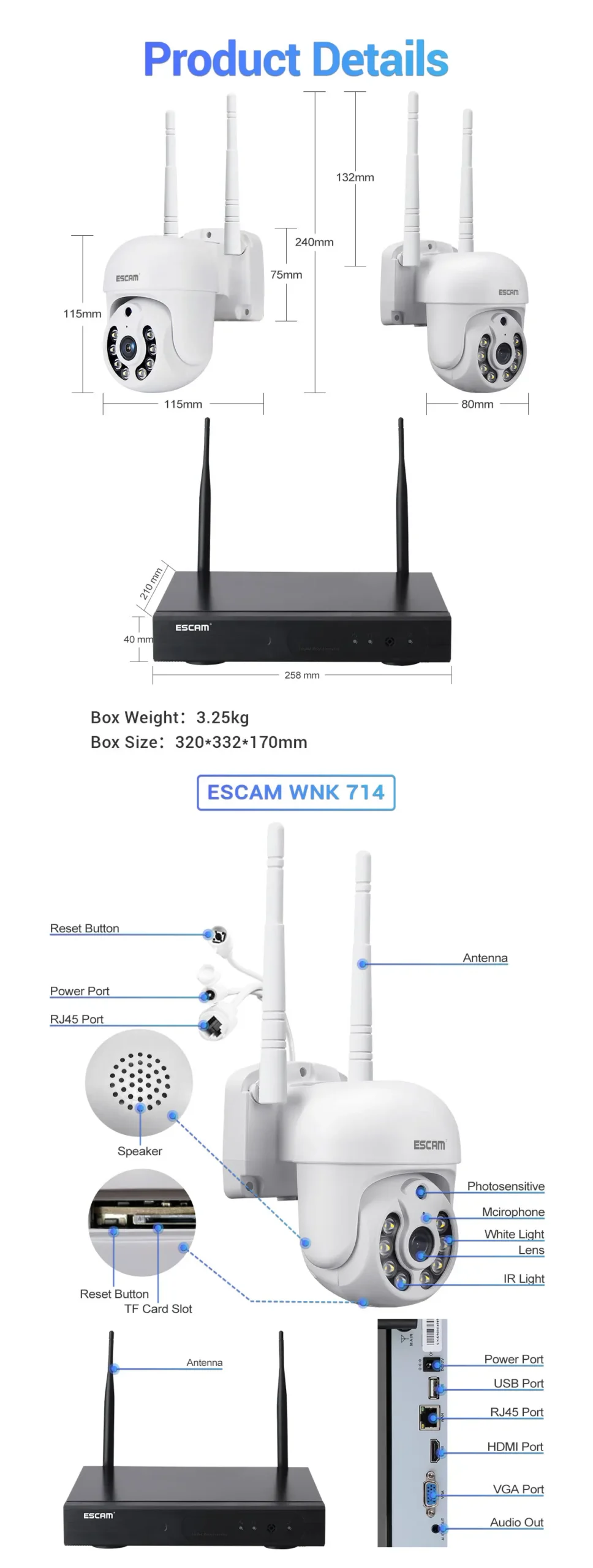

| size | 156x91x130mm | ||||||||||
| Package information | Weight | 3.25kg | |||||||||
| Size | 320x332x170mm | ||||||||||

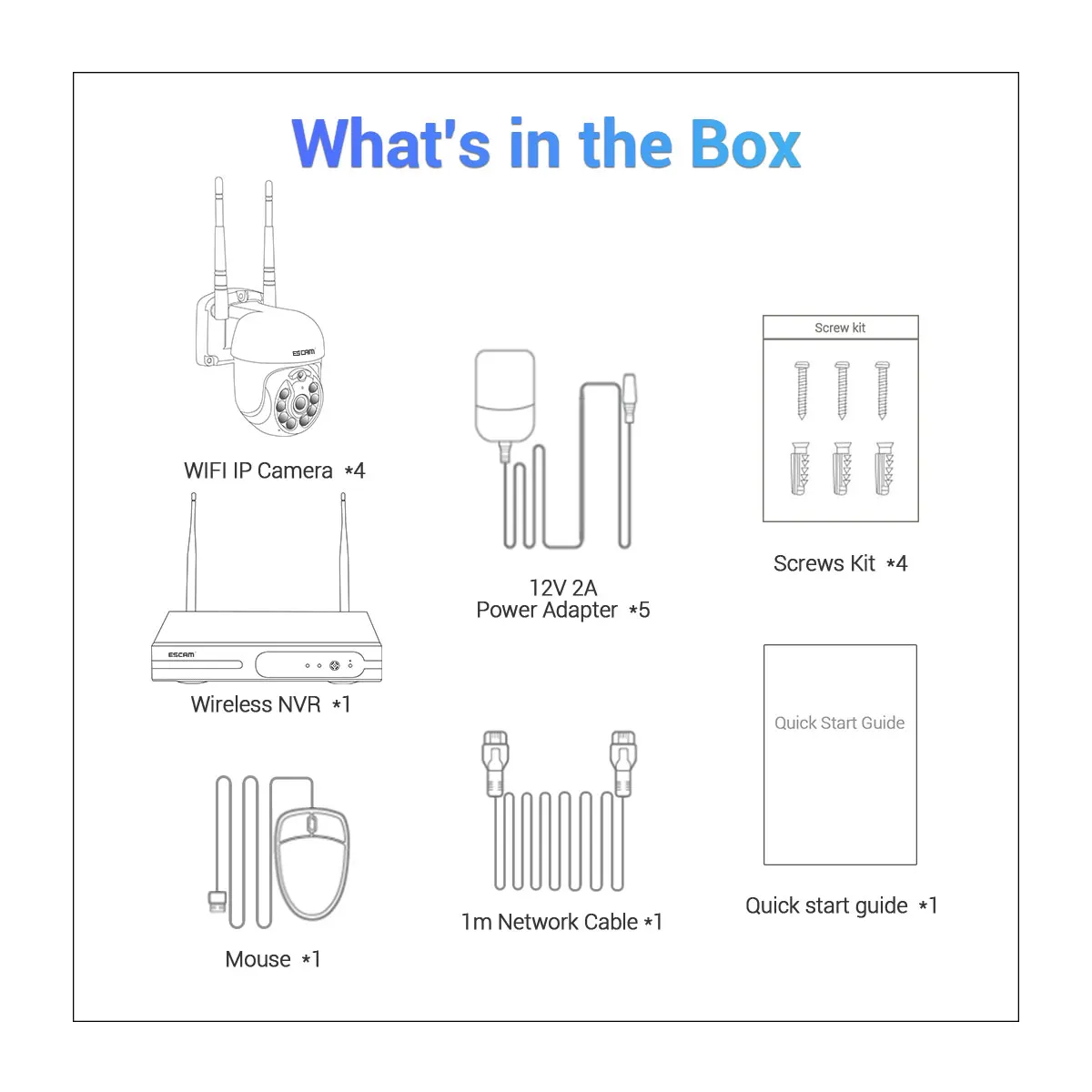

| Packing list | 8CH WIFI NVR*1, WIFI camera*4, NVR power adapter*1, camera power adapter*4, manual*1, mouse*1, screw pack*4, network cable*1 |
||||||||||
| Packing List | Quantity | 3PCS/box | |||||||||
| Weight | 10.3kg | ||||||||||
| Size | 530x330x345mm
